Gerätepark

© Sester

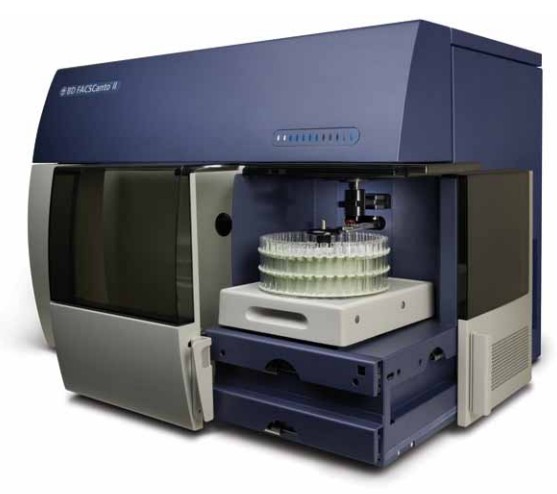

FACS Canto II

8-Color Option with 3 Lasers

Lasers Air-cooled:

  • 405-nm solid state diode, 30-mW fiber power output
  • 488-nm solid state, 20-mW laser output
  • 633-nm HeNe, 17-mW laser output

Fluorescence Detectors 8 PMTs in 4-2-2 configuration

  • Laser Dyes Violet: Pacific Blue™, AmCyan (455, 488 nm)
  • Blue: FITC, PE, PerCP or PerCP-Cy5.5, PE-Cy7 (525, 575, 678 or 695, 785 nm)
  • Red: APC, APC-Cy7 (660, 785 nm

Loader

The analyser includes a carousel that accommodates up to 40 12 x 75-mm tubes and automatically loads them on the BD FACSCanto II system without operator intervention.


© Sester

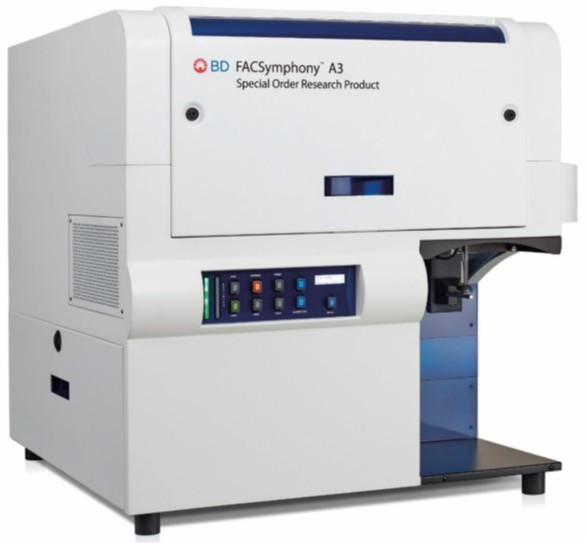

FACSymphony A3

5 Laser 6B-3R-8V-rYG-7UV, 28 Fluorescence detectors

Lasers and detectors

  • 488-nm (blue), 100mW Laser, 6 Fluorescence detectors
  • 637 nm (red), 140 mW Laser, 3 Fluorescence detectors
  • 405 nm (violet), 100 mW Laser, 8 Fluorescence detectors
  • 561 nm (yellow-green), 100 mW Laser, 4 Fluorescence detectors
  • 349 nm (UV), 100 mW Laser, 7 Fluorescence detectors

High Throughput Sampler (HTS)

Allows analysis of 96well or 384well microtiterplates in “walk-away” mode.
