Flow cytometry

BD FACSAriaTM Fusion Cell Sorter

Technical specifications:

• Four-way sorting of at least 25,000 events per second with a purity of >98%
• Detection of 18 fluorescence parameters
• Precise, fully automated live control of the drop delay
• Five high-quality, spatially separated lasers: 355 nm, 405 nm, 488 nm, 561 nm, 640 nm
• BSL-2 laboratory with a compact microbiological safety cabinet that houses the high-speed cell sorter
• Can also be used as cell analyser

Sony Cell Sorter SH800

Technical specifications:

• Alignment-free, benchtop sorter with four collinear excitation lasers: 405 nm, 488 nm, 561 nm, 638 nm
• Microfluidic sorting chip in three sizes (70 μm, 100 μm, 130 μm)
• Two-way sorter (right, left) in 5 ml or 15 ml tubes
• Single cell deposition in multiwell microplates / PCR plates
• Can also be used as cell analyser
• Operator-free system

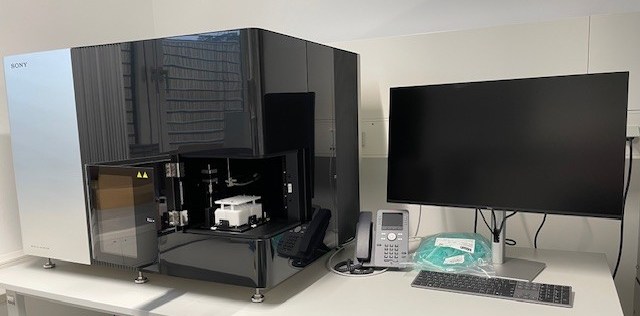

Spectral Cell Analyzer Sony ID7000

• Panels mit bis zu 28 Farben
• with 405nm/488nm/637nm Lasers
• Photomultiplier tubes (32-channel PMTs, single-channel PMTs, and single-channel IR-sensitive PMTs)
• High-End  Autosampler
