Hannover Messe: Micro-massaging – 'Artificial muscles' help fractured leg bones heal better

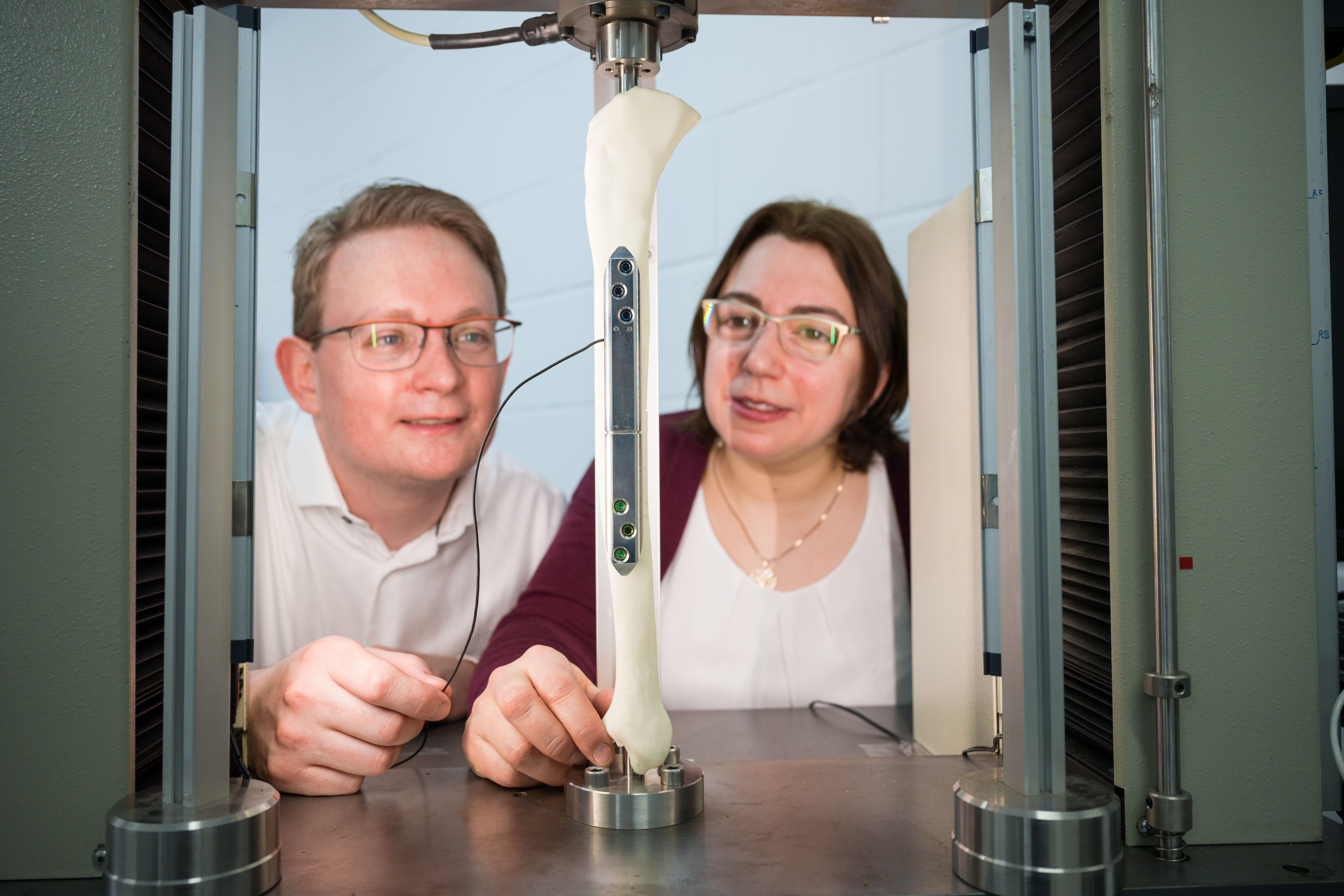

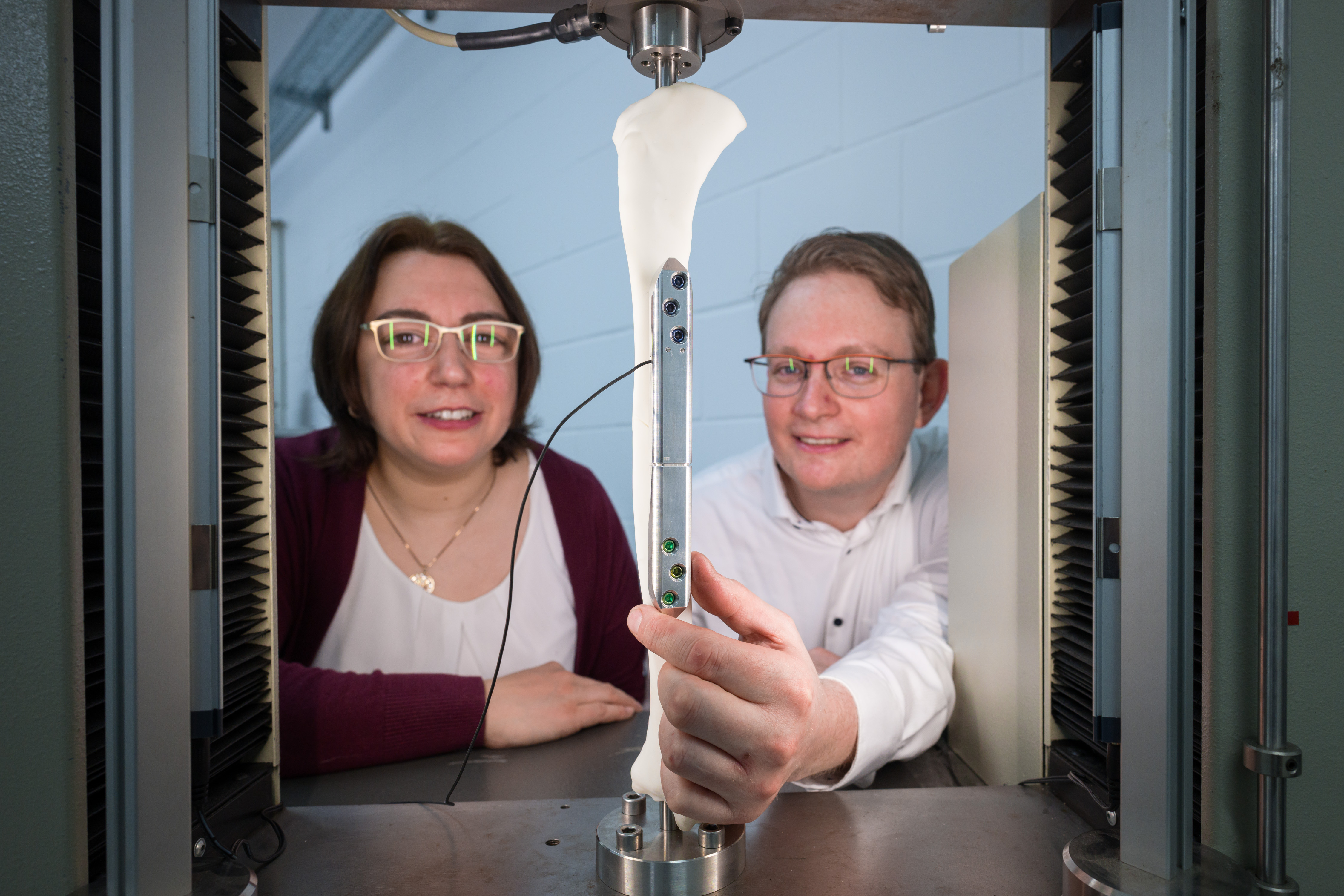

Susanne-Marie Kirsch and Felix Welsch show a bone with the prototype implant.
© Oliver DietzeSusanne-Marie Kirsch and Felix Welsch (r.) are doctoral research students in Stefan Seelecke´s group and are working on the prototype implant.

Orthopaedic implants are used to fixate the bone fragments of fractures. Novel smart implants are now being developed that can continuously monitor and actively promote bone healing. This innovative medical technology is currently under development at Saarland University by an interdisciplinary team of medical specialists, engineers and computer scientists. The team of engineers led by Professors Stefan Seelecke and Paul Motzki have equipped the implant with smart 'artificial muscles'.

Fabricated from shape memory wires, these 'muscles' provide a way to control the fracture repair process via smartphone. The team will be exhibiting their prototype at this year's Hannover Messe from 22 to 26 April (Hall 2 Stand B10).

Bones are both stable and elastic; they grow, they are constantly renewing themselves and they are built to withstand a lot of force. If a bone breaks, it can heal provided that the fragments are properly aligned. But sometimes things don't work out as planned and despite being operated on, the fracture doesn't heal as it should. This is particularly common in patients who have suffered a fracture of the lower leg – affecting around fourteen in every hundred cases. Once the leg has been operated on, the physician treating the patient can't simply look inside the leg to see how the bone repair process is progressing. It is only weeks later, when the first X-ray image is taken, that doctors can see whether new bone tissue is growing as it should. And when that is not the case, the result is typically pain, incapacity to work and high costs.

However, a new type of orthopaedic implant is now offering a way to continuously monitor the fracture repair process and even actively encourage the bone to heal. This innovative medical technology is being developed by a large interdisciplinary team of medical specialists, engineers and computer scientists at Saarland University. 'We're developing a smart implant that does not require any additional surgical intervention or additional equipment. An orthopaedic implant is typically a passive fixation plate that is used to set and stabilize the fractured bone. But we can now give it completely new capabilities,' explained Professor Stefan Seelecke, who heads research groups at Saarland University and at the Center for Mechatronics and Automation Technology (ZeMA).

As soon as the fixation plate has been attached and the wound sutured, the implant begins providing a continuous stream of information on how the fracture is healing. If the patient puts too much pressure on the fracture, the smart implant will give a warning. At the fracture gap, where the bone fragments have been realigned with each other, the implant can be made locally more or less rigid as required; it can even undergo tiny motions to deliver a 'micro-massage' to the fracture site. This kind of 'micro-manipulation' at the surface of the bone actively promotes healing by stimulating growth. And these processes can all be fully automated using a smartphone. The smart implants have been developed on the basis of expert input from a range of specialist fields.

Nickel-titanium 'shape memory' wires no thicker than a human hair play a central role in these advanced orthopaedic implants. The engineering side of the project is managed by the two Saarbrücken professors Stefan Seelecke and Paul Motzki, who are experts in intelligent materials systems. 'We use these shape memory wires as mechanical actuators that can alter the local rigidity of the implant and can make it move or exert a force. But we also use them as sensors to monitor processes taking place at the fracture site,' explained Paul Motzki who holds a cross-institutional professorship in smart material systems for innovative production at Saarland University and at ZeMA.

The ultrafine nickel-titanium wires can contract or relax like real muscle fibres depending on whether an electric current is flowing or not. The reason for this behaviour lies in the crystal structure of the alloy. 'Nickel-titanium alloy is what is known as a shape memory material. At the level of the crystal lattice, the alloy can exist in two phases that can transform into each other,' explained Paul Motzki. 'If electric current flows through the wire, the material heats up, causing it to adopt a different crystal structure with the result that the wire becomes shorter. When the current is switched off, the wire cools down and returns to its original length. The engineers fabricate bundles of these fine wires, just as muscle fibres in nature are grouped into fibre bundles. By alternately tensing and relaxing the wires, the engineers can simulate the movement of flexor or extensor muscles. 'The more wires we have, the greater the surface area and the faster we can dissipate heat, which means faster contractions,' said Stefan Seelecke. The wires are able to exert a substantial force over a very short distance. 'These wires have the highest energy density of all known drive mechanisms and they can deliver a substantial tensile force,' explained Seelecke further.

But theses artificial muscles also have their own intrinsic sensor properties. 'When the wires change shape, so too does their electrical resistance. We can assign precise resistance values to even the smallest of deformations, which allows us to extract sensory data,' said Susanne-Marie Kirsch, who is doing doctoral research in the Saarbrücken group. The measurement data enable the team to monitor minute changes occurring in the gap between the bone fragments. The engineering team collaborates closely with the overall project leads at Saarland University: trauma surgeon Professor Tim Pohlemann and Professor of Innovative Implant Development Bergita Ganse. This close monitoring of the fracture gap enables the medical team to assess whether fracture site stiffness increases over time. In future, this sensor data will be transmitted wirelessly to a smartphone. Close interdisciplinary collaboration between the project sub-teams allows conclusions to be drawn about how targeted mechanical stimulation of the fracture site can best be used to promote bone healing. By careful data modelling and programming, the researchers are able to choreograph highly precise motion sequences for the fixation plate to perform.

At this year's Hannover Messe, the research team will be demonstrating a prototype smart orthopaedic implant that makes use of artificial muscle fibres. These electrically responsive fibres can be positioned above the fracture site. Electrical signals can then be applied to control whether the artificial muscles fibres elongate, contract or remain unchanged, thus determining the local rigidity of the fixation plate at the fracture site. The researchers can control the artificial muscles that span the fracture gap so that they expand and contract at the required frequency. A stroke amplitude in the range 100–500 micrometres produces the best results. And thanks to their intrinsic sensor properties, these bundles of shape memory wires also effectively serve as the implant's nervous system. If it becomes harder to contract the artificial muscles positioned across the fracture gap, this is a good indication that the bone tissue in this region is become harder and the healing process is progressing.

The system is controlled by a semiconductor chip. 'The control unit is able to precisely correlate the electrical resistance data with the extent of deformation of the wires so that bone healing can be stimulated by carefully controlled movements of the plate, effectively micro-massaging the fracture site,' explained PhD student Felix Welsch, who is also helping to develop the smart implant. Once in place, the implants can be left do their work. Even charging is carried out remotely: 'The implant will be fitted with a powerful battery that can be recharged in situ via wireless induction,' said Paul Motzki.


The research team led by Stefan Seelecke and Paul Motzki uses shape memory technology in a wide range of applications, ranging from novel cooling systems and robotic grippers to valves and pumps. The technology continues to be developed by PhD students who are conducting research as part of their doctoral dissertation projects. The results have been published as papers in a variety of scientific journals and the research work has received financial support through a number of large-scale research projects.
The Saarbrücken team are keen to see the results of their applied research transferred to commercial and industrial applications. To facilitate this type of technology transfer, the company ‘mateligent GmbH’ was spun off from Professor Seelecke's department.

The interdisciplinary Smart Implants project has received €8 million in funding from the Werner Siemens Foundation. Overall coordination of the Smart Implants project is the responsibility of the two orthopaedic surgeons at Saarland University Medical Center: Professor Tim Pohlemann who holds the Chair of Trauma Surgery at Saarland University, and Professor Bergita Ganse, who holds the Werner Siemens Foundation Endowed Chair for Innovative Implant Development (Fracture Healing) at Saarland University. Research work is being conducted in numerous areas, including gait analysis and fracture monitoring by smart orthopaedic implants, stimulation of the fracture site, implant planning and configuration via computer simulations, and the application of artificial intelligence to smart implants with sensor and actuator capabilities. The Smart Implants project is an interdisciplinary collaboration between the research team at Saarland University Medical Center led by trauma surgeon Professor Tim Pohlemann and Professor of Innovative Implant Development Bergita Ganse, the intelligent materials research team headed by Professor Stefan Seelecke and Professor Paul Motzki, the research group at the Applied Mechanics Lab headed by Professor Stefan Diebels, and Professor of Computer Science at Saarland University Philipp Slusallek and his team at the German Research Center for Artificial Intelligence (DFKI).
